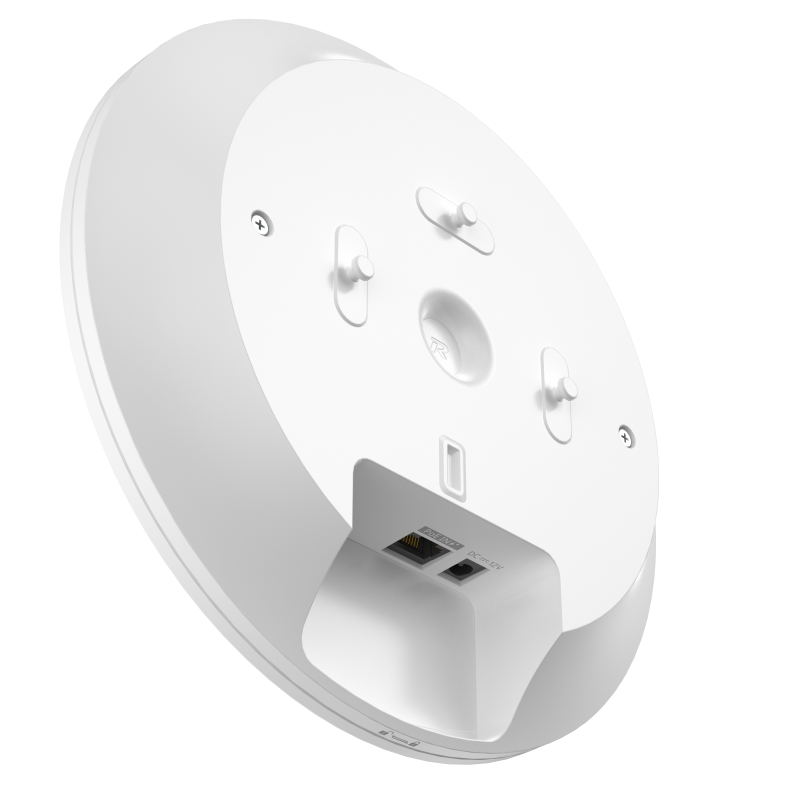

Enterprise Wi-Fi 6 Access Point Specification Sheet
Enterprise Wi-Fi 6 Access Point
Physical Specifications
Dimensions Ø220 mm × 52.6 mm (Ø8.66 in. × 2.07 in.) Weight ≤ 0.5 kg (1.10 lbs.) Coverage Area 145 ㎡ (1560.77 sq. ft.) Maximum Client Count 64 (2.4 GHz)
512 (5 GHz)
512 (2.4 GHz and 5 GHz enabled)Mounting Ceiling / Wall (Mounts Included) Weather Resistance IP41 Note: Coverage data obtained in an ideal environment without obstruction. Actual signal coverage depends on client performance and environmental interference.Wireless Specifications
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax Spatial Streams 4 Wi-Fi Protocols 2.4 GHz: IEEE 802.11 b/g/n/ax
5 GHz: IEEE 802.11 a/n/ac/axMIMO 2.4 GHz: 2 × 2 MU-MIMO
5 GHz: 2 × 2 MU-MIMOChannel Bandwidth 2.4 GHz: 20/40 MHz
5 GHz: 20/40/80/160 MHzThroughput Rate 2.4 GHz: 573 Mbps
5 GHz: 2401 MbpsAntenna Gain 2.4 GHz: 3.53 dBi
5 GHz: 5.15 dBiMaximum Transmit Power 2.4 GHz: 25 dBm
5 GHz: 25 dBmHardware Specifications
Networking Interface (1) 1GbE RJ45 Port Power Consumption ≤ 18 W Power Method PoE / PoE+
DC (12 V, 2 A)
DC Power Adapter Not IncludedLED Indicator 1 × System LED Indicator (Blue) Button 1 × Factory Reset Lightning Protection / Surge ±2 kV Modulation & Receiver Sensitivity
Modulation OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, 64-QAM @ 48/54 Mbps
DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, CCK @ 5.5/11 Mbps
MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM OFDMAReceiver Sensitivity 11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11 Mbps)
11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps)
11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15)
11ac 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9)
11ac 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9)
11ac 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9)
11ac 160 MHz: –76 dBm (MCS0), –50 dBm (MCS9)
11ax 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11)
11ax 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11)
11ax 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11)
11ax 160 MHz: –76 dBm (MCS0), –49 dBm (MCS11)Environment
Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature –40°C to +70°C (–40°F to +158°F) Operating Humidity 5% RH to 95% RH (non-condensing) Storage Humidity 5% RH to 95% RH (non-condensing) Software Features
Operating Modes AP Mode and Router Mode Router Mode YES AP Mode YES Maximum SSIDs 8 per radio Band Steering YES Wireless Meshing YES Wi-Fi Multimedia (WMM) YES 802.1Q VLAN YES Multi-Link Operation (MLO) NO 4K-QAM NO RF Beamforming YES WiFi Speed Limiting YES Client Device Isolation YES WiFi Schedules YES Roaming Features
802.11v YES 802.11k YES 802.11r YES Layer 2 Roaming YES Layer 3 Roaming YES Security & Routing
PSK Authentication YES WPA / WPA2 / WPA-PSK YES OWE / WPA3-SAE YES 802.1X YES Ping YES Traceroute YES NAT YES Static IP Address YES DHCP Server YES PPPoE Client YES Captive Portal YES Bandwidth Limiting YES Data Quota NO Management & Maintenance
APs on Self-Organizing Network 300 Unified Networking YES Lysora App Management YES Web Interface Management YES Lysora Cloud Management YES SNMP YES Optimization Features Optimization of channel, transmit power, and management frame power settings. Displays both pre- and post-optimization settings. Unified Cloud Monitoring YES Compliance & Certifications
NDAA Compliant Yes Health UL 62368-1:2019 RF Standards FCC 47 CFR Part 2 Subpart J
FCC 47 CFR Part 15 Subpart E
IC RSS-247 Issue 3EMC Standards FCC 47 CFR Part 15 Subpart B
ICES-003 Issue 7Certifications FCC, IC Operating Frequency
US / Canada 2400 – 2472 MHz
U-NII-1: 5150 – 5250 MHz
U-NII-2A: 5250 – 5350 MHz
U-NII-2C: 5470 – 5725 MHz
U-NII-3: 5725 – 5850 MHz
U-NII-5 to U-NII-8: 5925 – 7125 MHzWorldwide 2400 – 2483.5 MHz
5150 – 5725 MHz
5925 – 7125 MHz - Additional Information
-
