Wi-Fi 7 BE5000 dual-band ceiling mount access point

Dual-band 2.4 GHz/5 GHz, high throughput with 5 spatial streams

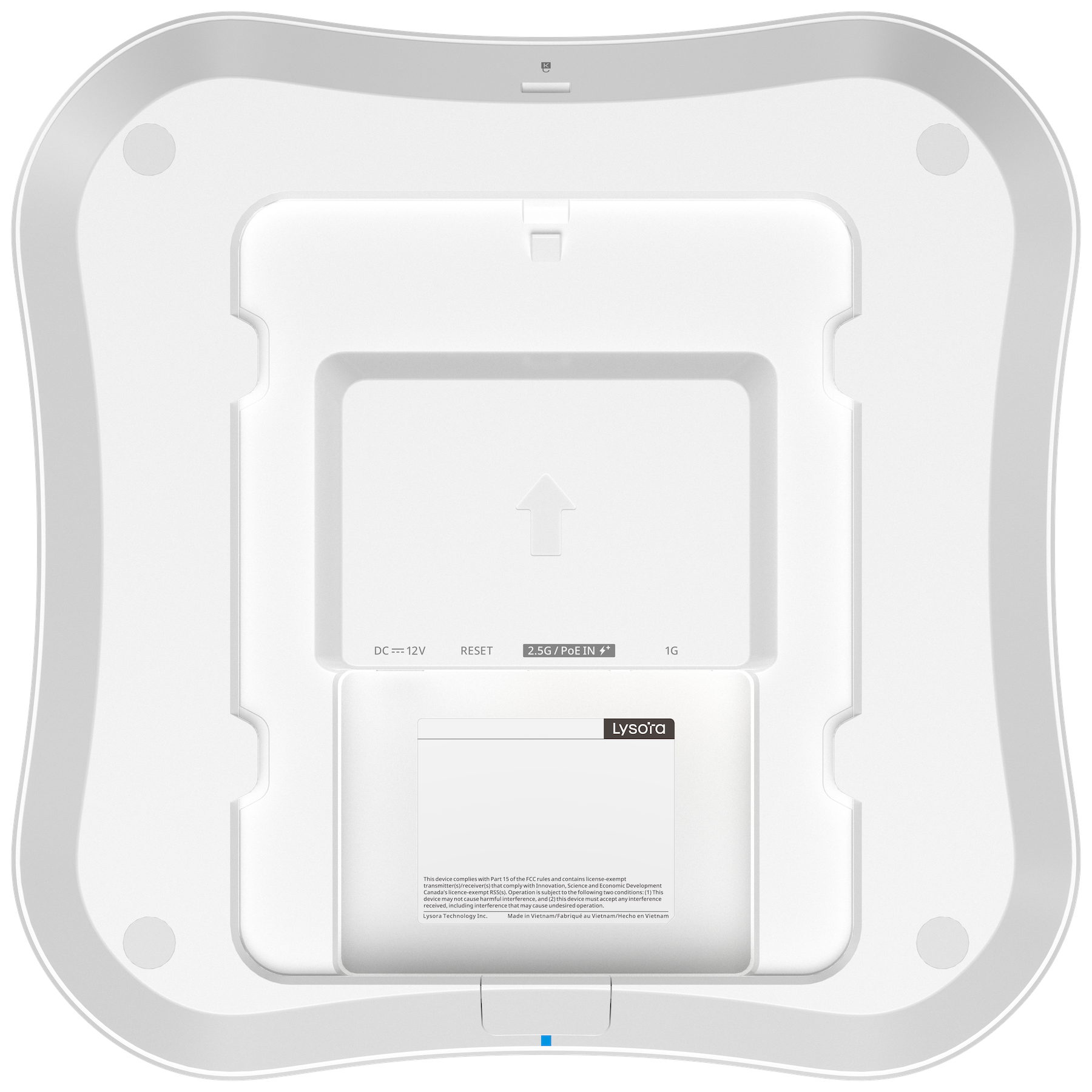

1 x 100/1000/2500BASE-T port and 1 x 100/1000BASE-T port

AP and routing mode

Unified networking and management based on Lysora Cloud App

Max power consumption < 30 W

802.3at PoE In and 12V DC power supply (PoE injector and DC adapter purchased separately)

Call For Pricing

Description

Details

Enterprise Wi-Fi 7 Access Point Specification Sheet

Physical Specifications

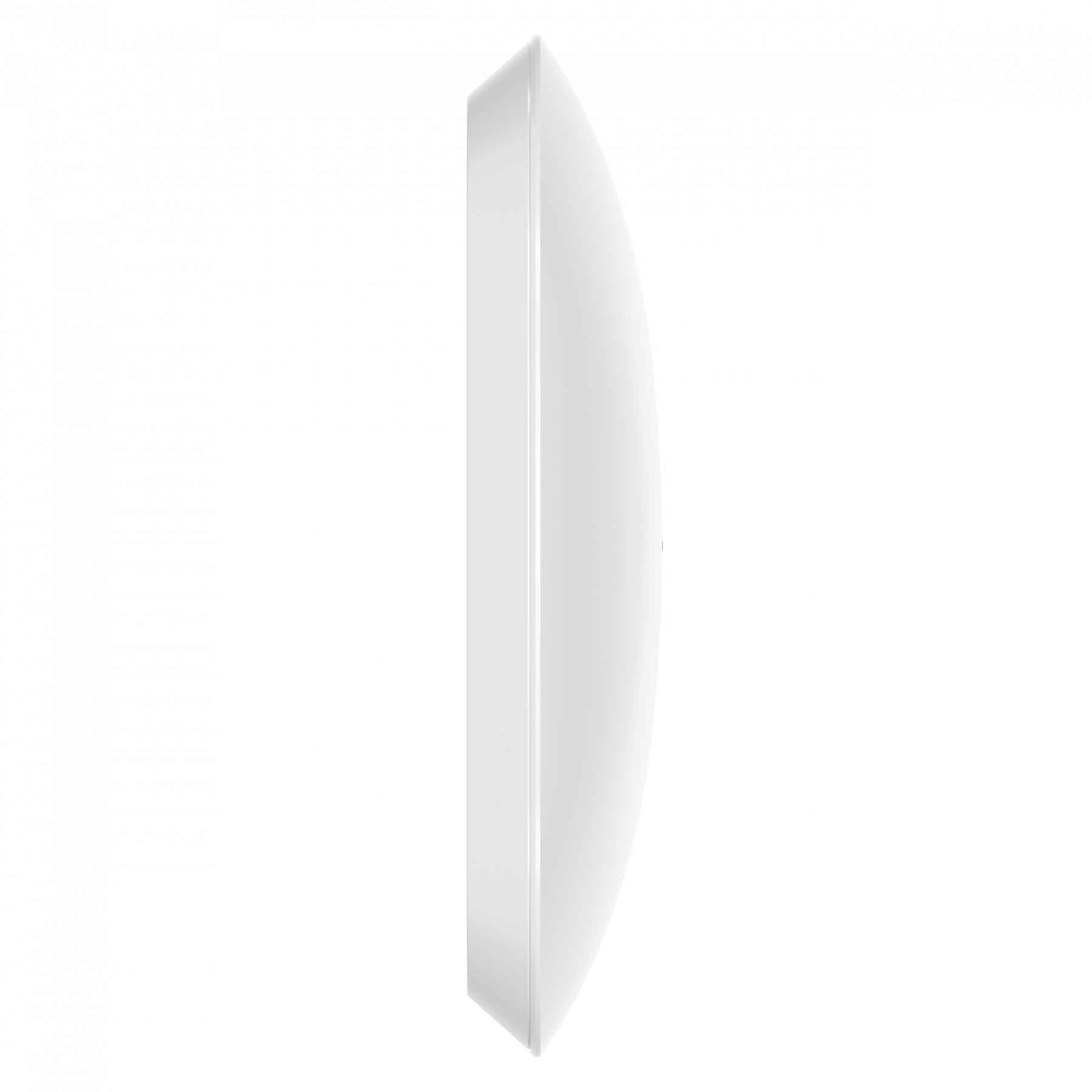

Dimensions	208 mm × 208 mm × 40 mm (8.19 in. × 8.19 in. × 1.57 in.)
Weight	≤ 0.75 kg (1.65 lbs.)
Coverage Area	145 ㎡ (1560.77 sq. ft.)
Maximum Client Count	64 (2.4 GHz) 511 (5 GHz) 511 (2.4 GHz and 5 GHz enabled)
Recommended Wireless Clients	IEEE 802.11ax + 160 MHz 16 (2.4 GHz) 94 (5 GHz) 110 Combined IEEE 802.11ax + 80 MHz 16 (2.4 GHz) 84 (5 GHz) 100 Combined IEEE 802.11ac 16 (2.4 GHz) 64 (5 GHz) 80 Combined

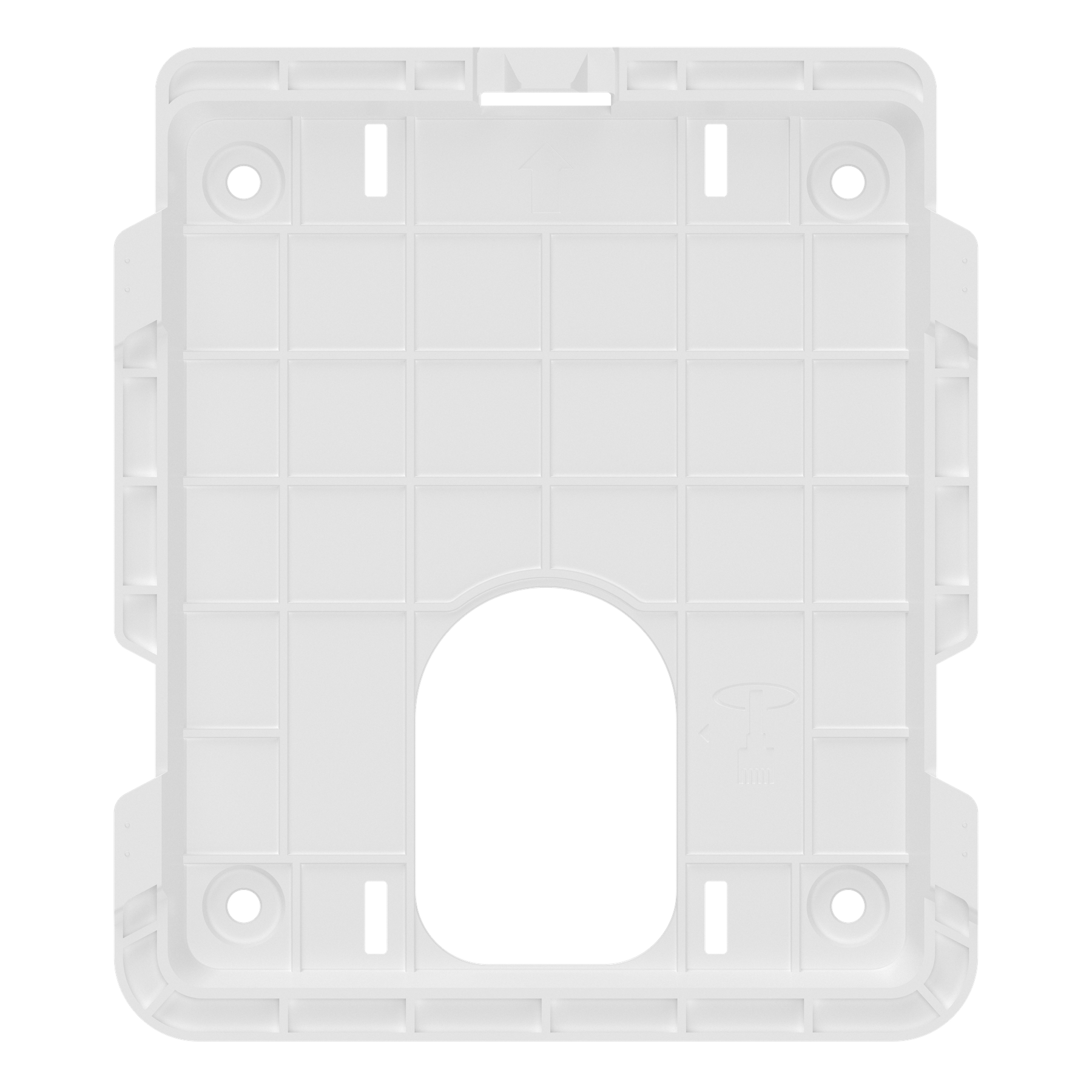

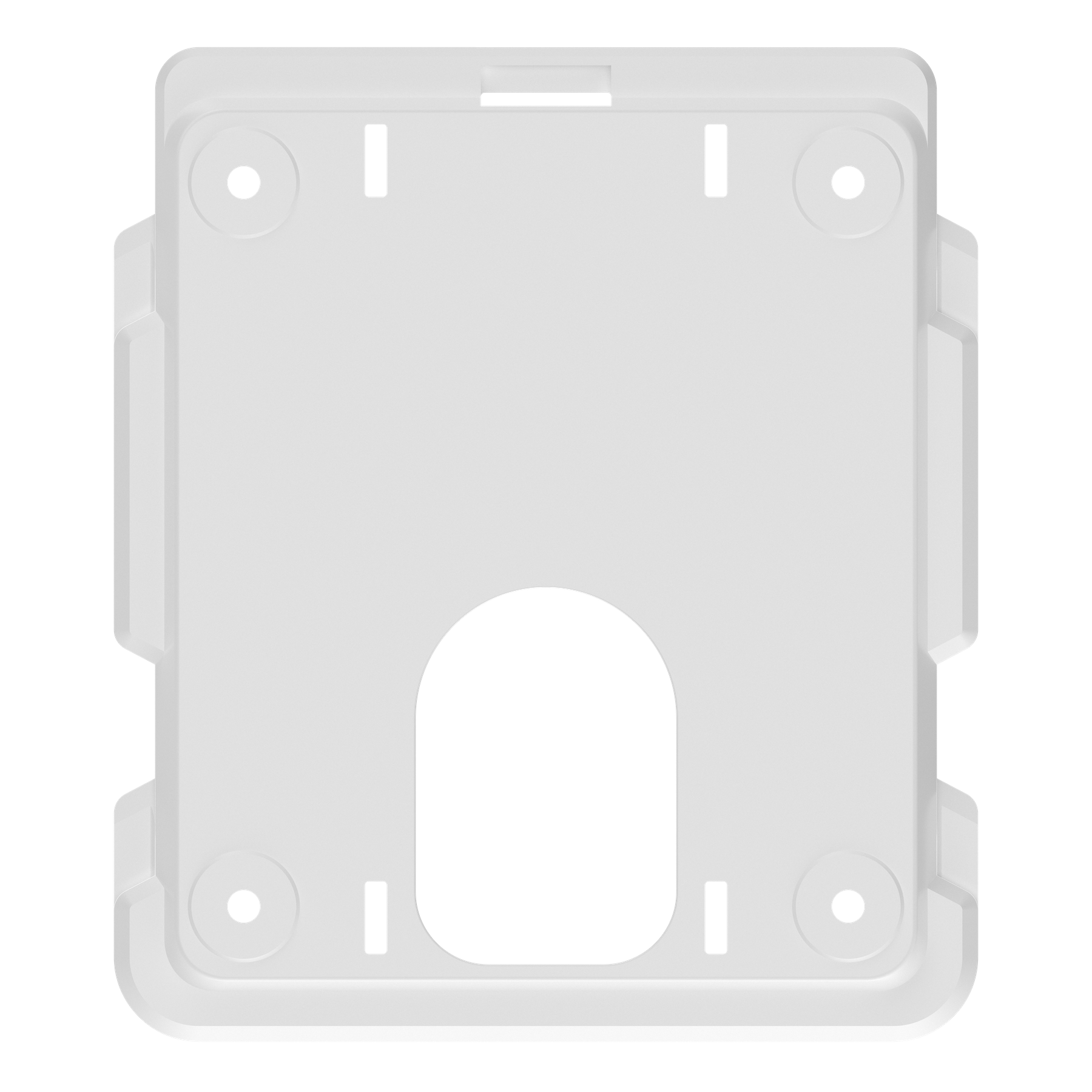

Mounting	Ceiling / Wall (Mounts Included)

Note: Coverage data obtained in an ideal environment without obstruction. Actual signal coverage depends on client performance and environmental interference.

Wireless Specifications

Wi-Fi Standards	IEEE 802.11 a/b/g/n/ac/ax/be
Spatial Streams	5
Networking Interfaces	1 × 10/100/1000/2500BASE-T Port 1 × 10/100/1000BASE-T Port
Wi-Fi Protocols	2.4 GHz: IEEE 802.11 b/g/n/ax/be 5 GHz: IEEE 802.11 a/n/ac/ax/be
MIMO	2.4 GHz: 2 × 2 MU-MIMO 5 GHz: 3 × 3 MU-MIMO
Channel Bandwidth	2.4 GHz: 20/40 MHz 5 GHz: 20/40/80/160 MHz
Wireless Data Rate	2.4 GHz: 688 Mbps 5 GHz: 4323 Mbps
Antenna Gain	2.4 GHz: 3.00 dBi 5 GHz: 4.00 dBi
Maximum Transmit Power	2.4 GHz: 27 dBm 5 GHz: 29.7 dBm

Hardware Specifications

Power Consumption	≤ 30 W
Power Method	PoE+ DC (12 V, 2.5A) DC Power Adapter Not Included
LED Indicator	1 × System Status LED
Button	1 × Reset Button
Weather Resistance	IP41
Lightning / Surge Protection	±2 kV

Modulation & Receiver Sensitivity

Modulation	OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM OFDMA
Receiver Sensitivity	11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11 Mbps) 11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps) 11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15) 11ac: 20 MHz: –83 dBm (MCS0), –57 dBm (MCS9) 40 MHz: –79 dBm (MCS0), –57 dBm (MCS9) 80 MHz: –76 dBm (MCS0), –51 dBm (MCS9) 160 MHz: –76 dBm (MCS0), –50 dBm (MCS9) 11ax: 20 MHz: –85 dBm (MCS0), –58 dBm (MCS11) 40 MHz: –82 dBm (MCS0), –54 dBm (MCS11) 80 MHz: –79 dBm (MCS0), –52 dBm (MCS11) 160 MHz: –76 dBm (MCS0), –49 dBm (MCS11) 11be: 20 MHz: –85 dBm (MCS0), –52 dBm (MCS13) 40 MHz: –82 dBm (MCS0), –49 dBm (MCS13) 80 MHz: –82 dBm (MCS0), –46 dBm (MCS13) 160 MHz: –79 dBm (MCS0), –44 dBm (MCS13)

Modulation

OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps

DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps

MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM OFDMA

Receiver Sensitivity

11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11 Mbps)

11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps)

11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15)

11ac:
20 MHz: –83 dBm (MCS0), –57 dBm (MCS9)
40 MHz: –79 dBm (MCS0), –57 dBm (MCS9)
80 MHz: –76 dBm (MCS0), –51 dBm (MCS9)
160 MHz: –76 dBm (MCS0), –50 dBm (MCS9)

11ax:
20 MHz: –85 dBm (MCS0), –58 dBm (MCS11)
40 MHz: –82 dBm (MCS0), –54 dBm (MCS11)
80 MHz: –79 dBm (MCS0), –52 dBm (MCS11)
160 MHz: –76 dBm (MCS0), –49 dBm (MCS11)

11be:
20 MHz: –85 dBm (MCS0), –52 dBm (MCS13)
40 MHz: –82 dBm (MCS0), –49 dBm (MCS13)
80 MHz: –82 dBm (MCS0), –46 dBm (MCS13)
160 MHz: –79 dBm (MCS0), –44 dBm (MCS13)

Environment

Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	–40°C to +70°C (–40°F to +158°F)
Operating Humidity	5% RH to 95% RH (Non-condensing)
Storage Humidity	5% RH to 95% RH (Non-condensing)

Software Features

Working Modes	Router Mode / AP Mode
Router Mode	YES
AP Mode	YES
Maximum SSIDs	8
Band Steering	YES
Wireless Meshing	YES
Wi-Fi Multimedia (WMM)	YES
802.1Q VLAN	YES
Multi-Link Operation (MLO)	YES
4K-QAM	YES
RF Beamforming	YES
WiFi Speed Limiting	YES
Client Device Isolation	YES
WiFi Schedules	YES

Roaming Features

802.11v	YES
802.11k	YES
802.11r	YES
Layer 2 Roaming	YES
Layer 3 Roaming	YES

Security & Routing

PSK Authentication	YES
WPA / WPA2 / WPA-PSK	YES
OWE / WPA3-SAE	YES
802.1X	YES
Ping	YES
Traceroute	YES
NAT	YES
Static IP Address	YES
DHCP Server	YES
PPPoE Client	YES
Captive Portal	YES
Bandwidth Limiting	YES
Data Quota	NO

Management & Maintenance

APs on Self-Organizing Network	300
Unified Networking	YES
Lysora App Management	YES
Web Interface Management	YES
Lysora Cloud Management	YES
SNMP	YES
AI Optimization	YES
Unified Cloud Monitoring	YES

Compliance & Certifications

NDAA Compliant	Yes
Health	UL 62368-1:2019
RF Standards	EN 300 328 EN 301 893 EN 300 440
EMC Standards	FCC 47 CFR Part 15 Subpart B ICES-003 Issue 7
Certifications	FCC, IC, cTUVus

Operating Frequency

US / Canada	2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 to U-NII-8: 5925 - 7125 MHz
Worldwide	2400 - 2483.5 MHz 5150 - 5725 MHz 5925 - 7125 MHz
