Wi-Fi 7 Access Point Specification Sheet

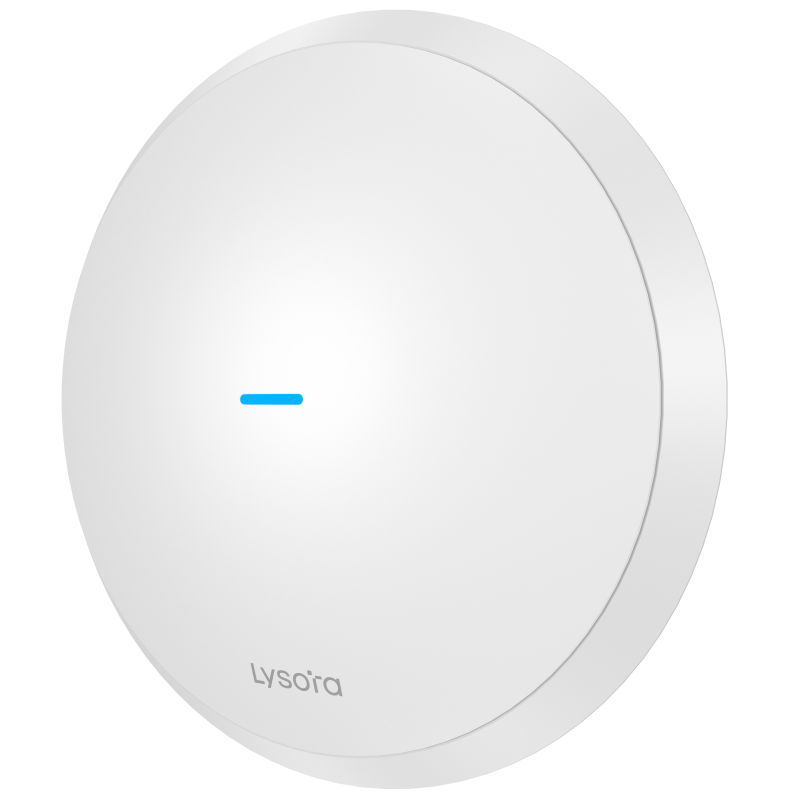

Enterprise Wi-Fi 7 Access Point
Physical Specifications

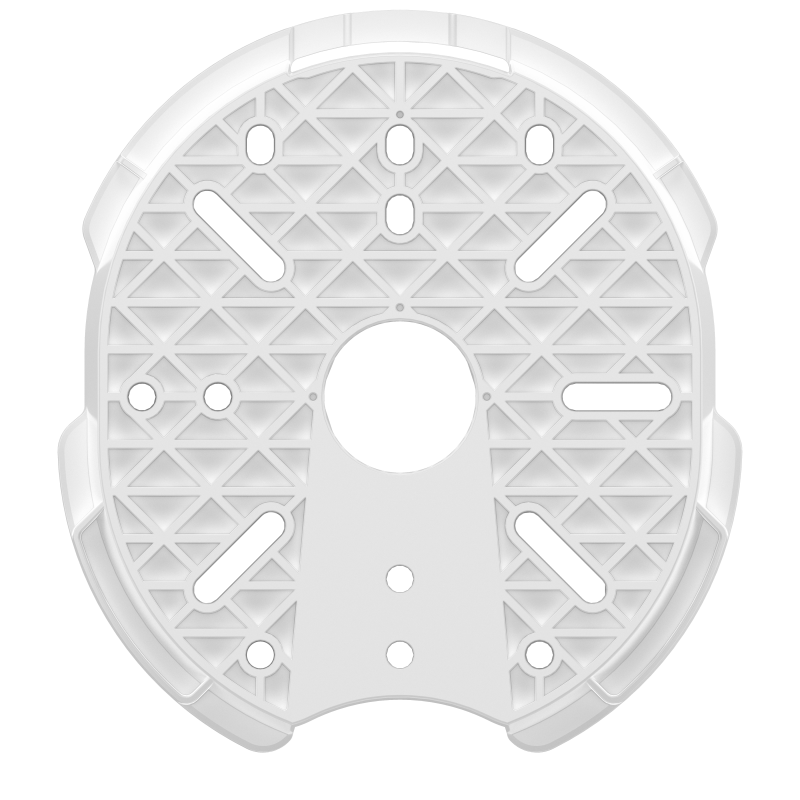

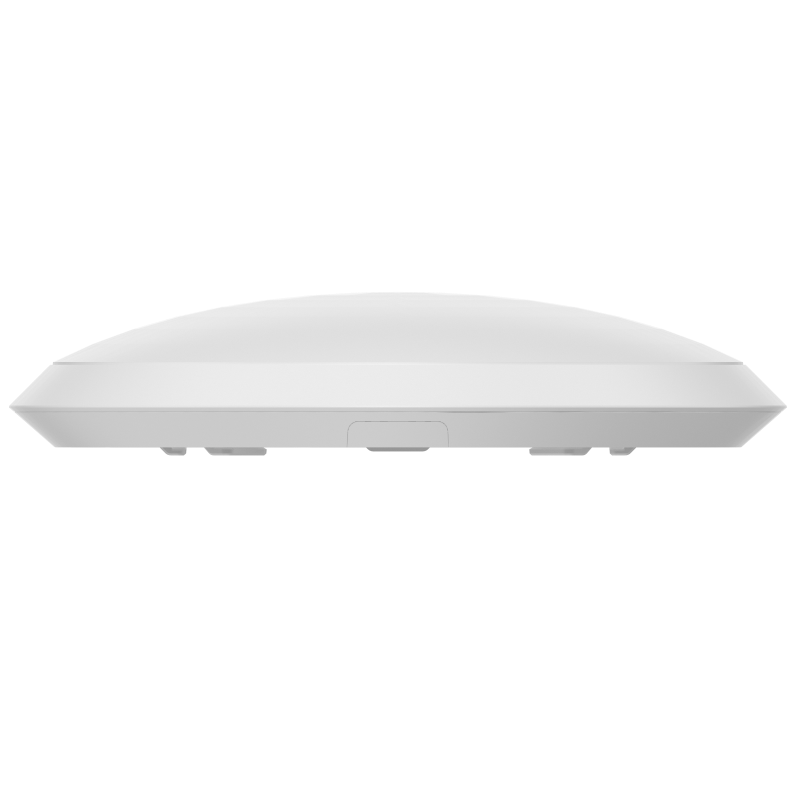

Dimensions Ø195 mm × 41 mm (Ø7.68 in. × 1.61 in.) Weight ≤ 0.6 kg (1.32 lbs.) Coverage Area 140 m² (1,500 ft²) Maximum Client Count 100+ Mounting Ceiling / Wall (Mounts Included) Wireless Specifications
Wi-Fi Standards IEEE 802.11 a/b/g/n/ac/ax/be Spatial Streams 4 Networking Interface (1) 2.5GbE RJ45 Port Wi-Fi Protocols 2.4 GHz: IEEE 802.11 b/g/n/ax/be
5 GHz: IEEE 802.11 a/n/ac/ax/beMIMO 2.4 GHz: 2 × 2 MU-MIMO
5 GHz: 2 × 2 MU-MIMOChannel Bandwidth 2.4 GHz: 20/40 MHz
5 GHz: 20/40/80/160 MHzThroughput Rate 2.4 GHz: 688 Mbps
5 GHz: 2882 MbpsAntenna Gain 2.4 GHz: 3.23 dBi
5 GHz: 4.44 dBiMaximum Transmit Power 2.4 GHz: 25.7 dBm
5 GHz: 25 dBmHardware Specifications
Power Consumption ≤ 14 W Power Method PoE
DC (12 V, 1.5A)
DC Power Adapter Not IncludedLED Indicator 1 × System LED Indicator (Blue) Button 1 × Factory Reset Weather Resistance IP41 Lightning Protection / Surge ±2 kV Modulation & Receiver Sensitivity
Modulation OFDM: BPSK @ 6/9 Mbps, QPSK @ 12/18 Mbps, 16-QAM @ 24 Mbps, and 64-QAM @ 48/54 Mbps
DSSS: DBPSK @ 1 Mbps, DQPSK @ 2 Mbps, and CCK @ 5.5/11 Mbps
MIMO-OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, and 4096-QAM OFDMAReceiver Sensitivity 11b: –91 dBm (1 Mbps), –88 dBm (5.5 Mbps), –85 dBm (11 Mbps)
11a/g: –89 dBm (6 Mbps), –80 dBm (24 Mbps), –76 dBm (36 Mbps), –71 dBm (54 Mbps)
11n: –83 dBm (MCS0), –65 dBm (MCS7), –83 dBm (MCS8), –65 dBm (MCS15)
11ac:
20 MHz: –83 dBm (MCS0), –57 dBm (MCS9)
40 MHz: –79 dBm (MCS0), –57 dBm (MCS9)
80 MHz: –76 dBm (MCS0), –51 dBm (MCS9)
160 MHz: –76 dBm (MCS0), –50 dBm (MCS9)
11ax:
20 MHz: –85 dBm (MCS0), –58 dBm (MCS11)
40 MHz: –82 dBm (MCS0), –54 dBm (MCS11)
80 MHz: –79 dBm (MCS0), –52 dBm (MCS11)
160 MHz: –76 dBm (MCS0), –49 dBm (MCS11)
11be:
20 MHz: –85 dBm (MCS0), –52 dBm (MCS13)
40 MHz: –82 dBm (MCS0), –49 dBm (MCS13)
80 MHz: –82 dBm (MCS0), –46 dBm (MCS13)
160 MHz: –79 dBm (MCS0), –44 dBm (MCS13)Environment
Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature –40°C to +70°C (–40°F to +158°F) Operating Humidity 5% RH to 95% RH (non-condensing) Storage Humidity 5% RH to 95% RH (non-condensing) Software Features
Operating Modes AP Mode and Router Mode Router Mode YES AP Mode YES Maximum SSIDs 8 per radio Band Steering YES Wireless Meshing YES Wi-Fi Multimedia (WMM) YES 802.1Q VLAN YES Multi-Link Operation (MLO) YES 4K-QAM YES RF Beamforming YES WiFi Speed Limiting YES Client Device Isolation YES WiFi Schedules YES Roaming Features
802.11v YES 802.11k YES 802.11r YES Layer 2 Roaming YES Layer 3 Roaming YES Security & Routing
PSK Authentication YES WPA / WPA2 / WPA-PSK YES OWE / WPA3-SAE YES 802.1X YES Ping YES Traceroute YES NAT YES Static IP Address YES DHCP Server YES PPPoE Client YES Captive Portal YES Bandwidth Limiting YES Data Quota NO Management & Maintenance
APs on Self-Organizing Network 300 Unified Networking YES Lysora App Management YES Web Interface Management YES Lysora Cloud Management YES SNMP YES Platform Management Features Optimization of channel, transmit power, and management frame power settings. Both pre- and post-optimization settings are displayed. Unified Cloud Monitoring YES Compliance & Certifications
NDAA Compliant Yes Health EN 62368-1 RF Standards EN 300 328
EN 301 893
EN 300 440EMC Standards EN 55032
EN 55035
EN 61000-3-3
EN 61000-3-2
EN 301489-1
EN 301489-3
EN 301489-17Certifications FCC, IC Operating Frequency
US / Canada 2400 - 2472 MHz
U-NII-1: 5150 - 5250 MHz
U-NII-2A: 5250 - 5350 MHz
U-NII-2C: 5470 - 5725 MHz
U-NII-3: 5725 - 5850 MHz
U-NII-5 to U-NII-8: 5925 - 7125 MHzWorldwide 2400 - 2483.5 MHz
5150 - 5725 MHz
5925 - 7125 MHz - Additional Information
-
