Rackmount PoE Switch Specification Sheet
PoE Switch
Overview
Dimensions 300 mm × 223 mm × 43.6 mm (11.81 in × 8.78 in × 1.72 in) Weight 2.12 kg (4.67 lbs) without packaging
2.80 kg (6.17 lbs) with packagingCasing Metal Mounting Rack Mount Warranty 3 Years Port Specifications

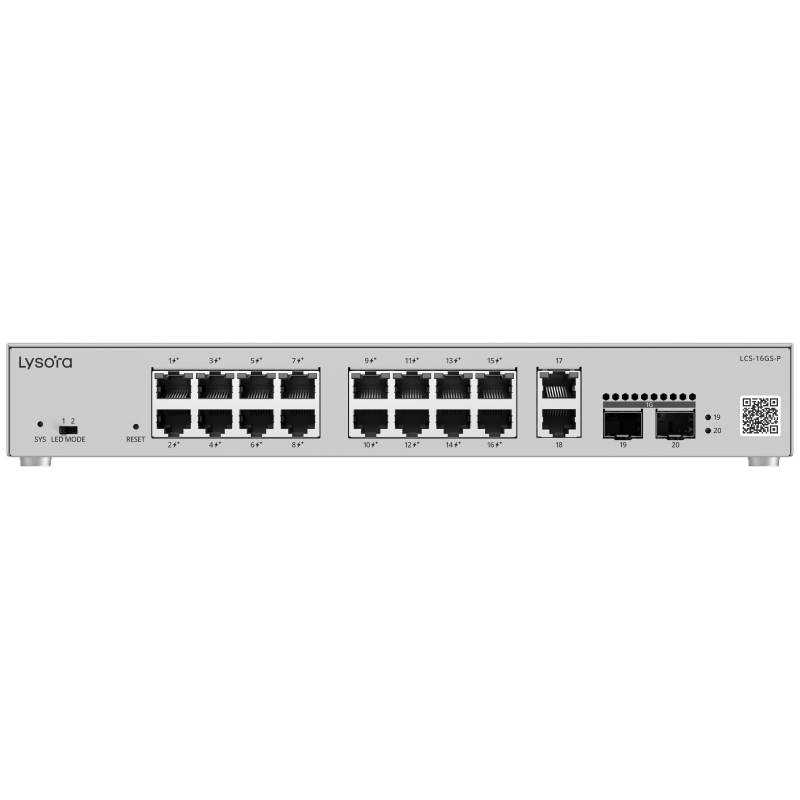

Total RJ45 Ports 18 Total Optical Ports 2 1GE Combo Ports - 1GE SFP Ports 2 10GE SFP+ Ports - 10/100BASE-T Ports - 10/100/1000BASE-T Ports 18 10/100/1000/2500BASE-T Ports - 100/1000/2.5G/5G/10GBASE-T Ports - PoE Specifications
PoE/PoE+ Out Ports 16 PoE/PoE+/PoE++ Out Ports - PoE Budget 250 W PoE Power Pins 1–2 (+), 3–6 (-) Hardware Specifications
Switching Capacity 40 Gbps Forwarding Rate 29.7 Mpps Buffer Size 4.1 Mbit CPU MAC chip, single-core processor, 500 MHz Flash Memory 8 MB Recommended Camera Limit 200W H265: 80 Cameras
400W H265: 40 CamerasPower Supply & Consumption
Power Method 220 V AC power supply
Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz
Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Rated input current: 4.5 AMaximum Power Consumption 15 W (no PoE load)
265 W (full PoE load)Heat Dissipation 51.3 BTU/hr (no PoE load)
904.3 BTU/hr (full PoE load)Environment & Reliability
Surge Protection Service port: ±4 kV common mode
Power connector: ±6 kV common mode and ±6 kV differential modeOperating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature –40°C to +70°C (–40°F to +158°F) Operating Humidity 10% RH to 90% RH (non-condensing) Storage Humidity 5% RH to 95% RH (non-condensing) Fan 1 × Fixed Fan Cooling Air cooling, left-to-right airflow Altitude –500 m to +5,000 m MTBF 200,000 hours ESD Protection Air discharge: 8 kV
Contact discharge: 6 kVSoftware Features
PoE Watchdog YES Online Upgrade YES Jumbo Frame Length (MTU) 10000 bytes EEE YES Cable Test YES Maximum VLANs 16 Maximum MAC Address Entries 8000 LAN VLAN Configuration YES IEEE 802.1Q VLAN YES Static MAC Address YES Interface Flow Control YES Rate Limiting YES DNS Client YES DHCP Client YES Port Isolation YES Broadcast Storm Control YES Multicast Storm Control YES Unknown Unicast Storm Control YES CPU Protection Policy YES DHCP Snooping YES Web Management YES Cloud Management YES App Management YES Mirroring YES Self-Organizing Network YES Camera Detection YES Compliance & Standards
NDAA Compliant YES EMC Standards EN 55032
EN 61000-3-2
EN 61000-3-3
EN 55035
EN 300 386Safety Compliance EN 62638-1 Certification CE, FCC Package Contents
Device 1 User Manual 1 Warranty Card 1 Rubber Pads 4 Power Cord Retention Clip - Screws 6 × M3 × 6 mm cross recessed countersunk head screws Grounding Cable - Power Cord 1 × 1.8 m (5.91 ft.) Rack-Mount Bracket - - Additional Information
-
