Network Switch Specification Sheet
PoE Switch
Overview
Dimensions 202 mm × 108 mm × 28 mm (7.95 in × 4.25 in × 1.10 in) Weight 0.55 kg (1.21 lbs) without packaging
1.65 kg (3.64 lbs) with packagingCasing Metal Mounting Wall / Desk Warranty 3 Years Port Specifications

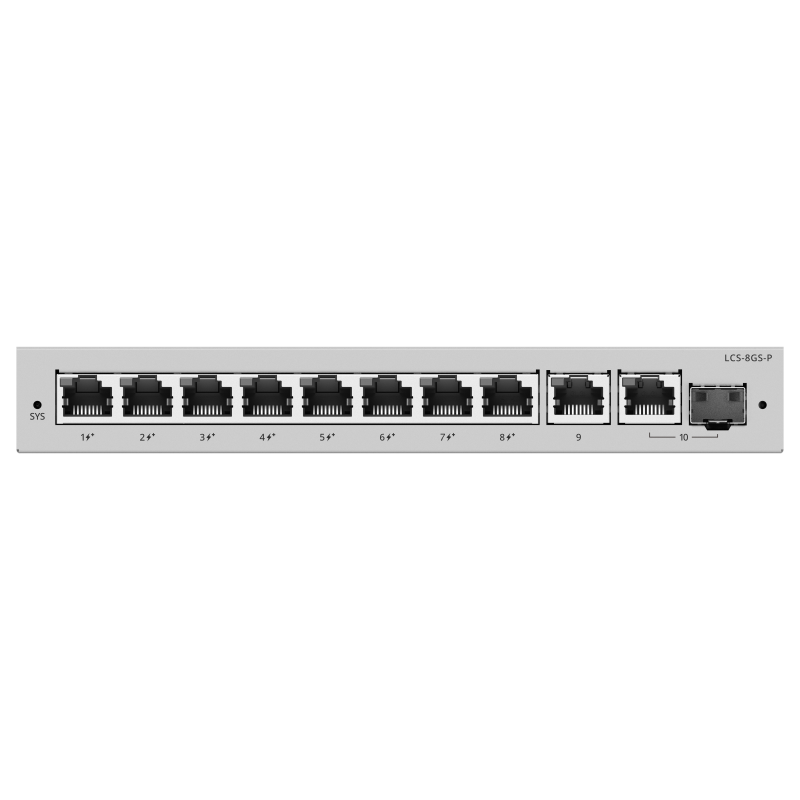

Total RJ45 Ports 10 Total Optical Ports 1 1GE Combo Ports 1 1GE SFP Ports 1 10GE SFP+ Ports - 10/100BASE-T Ports - 10/100/1000BASE-T Ports 10 10/100/1000/2500BASE-T Ports - 100/1000/2.5G/5G/10GBASE-T Ports - PoE Specifications
PoE/PoE+ Out Ports 8 PoE/PoE+/PoE++ Out Ports - PoE Budget 120 W PoE Power Pins 1–2 (+), 3–6 (-) Hardware
Switching Capacity 20 Gbps Forwarding Rate 14.8 Mpps Buffer Size 1.5 Mbit CPU MAC chip, single-core processor, 62.5 MHz Flash Memory 4 MB Recommended Camera Limit 200W H265: 40
400W H265: 20Power Supply & Consumption
Power Method DC power adapter
Rated input voltage: 100–240 V AC, 50–60 Hz
Maximum input voltage: 90–264 V AC, 47–63 Hz
Rated input current: 2.5 A
Output voltage: 54 V DC
Maximum output current: 2.4 AMax Power Consumption 10 W (no PoE load)
130 W (full PoE load)Heat Dissipation 34.2 BTU/hr (no PoE load)
443.6 BTU/hr (full PoE load)Environment & Reliability
Surge Protection Service port: ±6 kV common mode
Power connector: ±4 kV common mode / ±2 kV differentialOperating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature –40°C to +70°C (–40°F to +158°F) Operating Humidity 10% RH to 90% RH (non-condensing) Storage Humidity 5% RH to 95% RH (non-condensing) Fan Fanless Design Cooling Natural Cooling Altitude –500 m to +5,000 m MTBF 200,000 hours ESD Protection Air discharge: 8 kV
Contact discharge: 6 kVSoftware Features
PoE Watchdog YES Online Upgrade YES Jumbo Frame (MTU) YES EEE YES Cable Test YES IEEE 802.1Q VLAN YES Static MAC Address YES Interface Flow Control YES Rate Limiting YES DNS Client YES DHCP Client YES Port Isolation YES Broadcast Storm Control YES Multicast Storm Control YES Unknown Unicast Storm Control YES CPU Protection Policy YES DHCP Snooping YES Web Management YES Cloud Management YES App Management YES Mirroring YES Self-Organizing Network YES Camera Detection YES Compliance & Certification
NDAA Compliant YES EMC EN 55032
EN 61000-3-2
EN 61000-3-3
EN 55035
EN 300 386Safety Compliance EN 62638-1 Certification FCC, IC Package Contents
Device 1 User Manual 1 Warranty Card 1 Rubber Pad - Power Cord Retention Clip - Screw - Grounding Cable - Power Cord 1 × 1 m (3.28 ft.) Rack-Mount Bracket - - Additional Information
-
