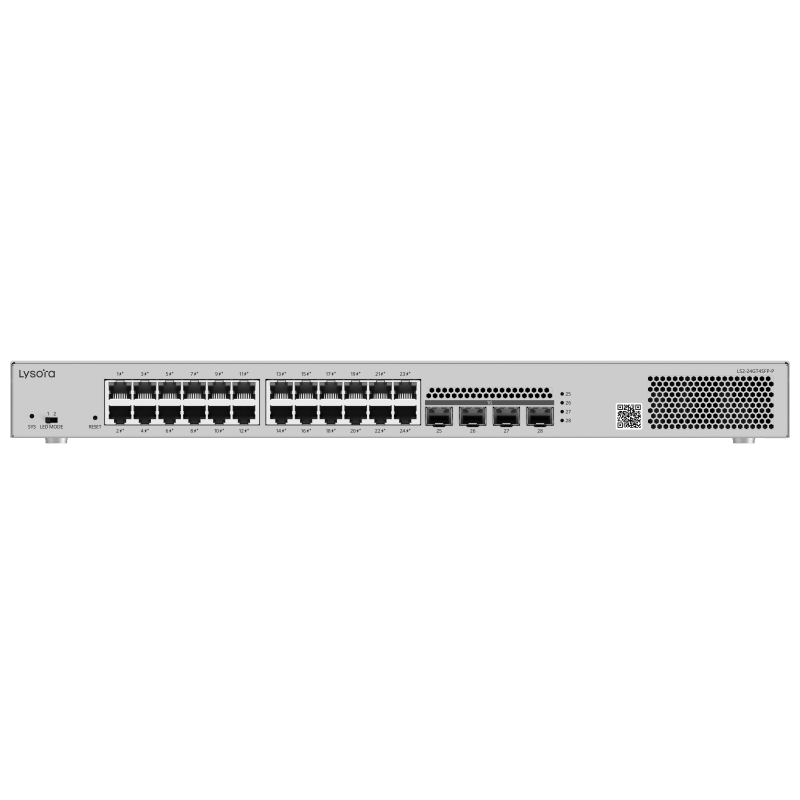

Managed PoE Switch
Overview
Dimensions 440 mm × 215 mm × 44 mm (17.32 in × 8.46 in × 1.73 in) Weight 3 kg (6.61 lbs) without packaging
3.53 kg (7.78 lbs) with packagingCasing Metal Mounting Rack / Desk Warranty 3 Years Port Specifications
Total RJ45 Ports 24 Total Optical Ports 4 1GE Combo Ports - 1GE SFP Ports 4 10GE SFP+ Ports - 10/100BASE-T Ports - 10/100/1000BASE-T Ports 24 10/100/1000/2500BASE-T Ports - 100/1000/2.5G/5G/10GBASE-T Ports - PoE Specifications
PoE/PoE+ Out Ports 24 PoE/PoE+/PoE++ Out Ports - PoE Budget 370 W PoE Power Pins 1–2 (+), 3–6 (-) Hardware Specifications
Switching Capacity 56 Gbps Forwarding Rate 41.66 Mpps Buffer Size 4.1 Mbit CPU MAC chip, single-core processor, 500 MHz RAM 512 MB Flash Memory 16 MB Recommended Camera Limit 200 W H265: 120 Cameras
400 W H265: 60 CamerasPower Supply & Consumption
Power Method 220 V AC power supply
Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current: 6 AMaximum Power Consumption 21 W (no PoE load)
443 W (full PoE load)Heat Dissipation No PoE load: 71.82 BTU/hr (220V/50Hz)
Full PoE load: 1,515.06 BTU/hr (220V/50Hz)Environment & Reliability
Surge Protection Service port: ±6 kV common mode
Power connector: ±6 kV for both common mode and differential modeOperating Temperature 0°C to +50°C (32°F to 122°F) Storage Temperature –40°C to +70°C (–40°F to +158°F) Operating Humidity 10% RH to 90% RH (non-condensing) Storage Humidity 5% RH to 95% RH (non-condensing) Fan 1 × Fixed Fan Cooling Air cooling, front-to-rear airflow + left-to-rear airflow Altitude Operating altitude: –500 m to +5,000 m
Storage altitude: –500 m to +5,000 mMTBF 400,000 hours ESD Protection Contact discharge: 6 kV
Air discharge: 8 kVEthernet Switching
Maximum VLANs 4094 Maximum MAC Address Entries 8000 Interface Flow Control Yes MAC Address-Based VLAN No IP Subnet-Based VLAN No Port-Based VLAN Yes IEEE 802.1Q VLAN Yes Basic QinQ No Voice VLAN Yes STP / RSTP / MSTP Yes LLDP / LLDP-MED Yes Static MAC Address Yes MAC Address Filtering Yes Static Aggregation Yes LACP Yes Rate Limiting Yes IP Services
Maximum ARP Entries 1000 ARP Yes IPv4 Ping Yes IPv4 Traceroute Yes ICMPv6 Yes IPv6 Ping Yes IPv6 Traceroute Yes DNS Client Yes DNSv6 Client Yes DHCP Relay Yes DHCP Server Yes DHCP Client Yes IP Routing
IPv4 Static Route No IPv6 Static Route No OSPFv2 No OSPFv3 No Multicast
IGMPv1 Snooping Yes IGMPv2 Snooping Yes Basic IGMPv3 Snooping Yes Full IGMPv3 Snooping No IGMP Filtering Yes IGMPv1/v2/v3 No ACL & QoS
Standard ACL Yes Extended ACL Yes 802.1p Traffic Classification Yes DSCP Traffic Classification Yes Egress Queues (802.1p / DSCP) Yes Egress Queues (IP Precedence) No Ingress Flow Rate Limiting No Queue Scheduling Yes DRR No SP Yes SP+DRR No SP+WFQ No SP+WRR Yes WFQ No WRR Yes Congestion Avoidance (Tail Drop) Yes Security
802.1X Authentication Yes IAB Yes MAC-Based 802.1X Yes Port-Based 802.1X Yes AAA No Radius No Port Isolation Yes Broadcast Storm Control Yes Multicast Storm Control Yes Unknown Unicast Storm Control Yes DHCP Snooping Yes IP-MAC-Port Binding Yes ARP Anti-Spoofing Yes IP Source Guard Yes CPU Protection Policy Yes Reliability
VCS No System Dual Backup No Cloud-Based Auto-Recovery Yes Loop Prevention Yes Management & Monitoring
Web Management Yes Cloud Management Yes App Management Yes Mirroring Yes Self-Organizing Network Yes Fan Speed Adjustment Intelligent speed adjustment HTTPS Login Yes RLOG Yes Syslog Yes PoE Service Failure Yes PoE Power Overload Yes SNMP v1/v2c/v3 Yes NTP Client Yes Camera Detection Yes Basic Configurations
PoE Watchdog Yes Local Upgrade Yes Online Upgrade Yes Jumbo Frame Length (MTU) 9216 bytes EEE Yes Cable Test Yes Compliance & Certification
NDAA Compliant Yes EMC FCC 47 CFR Part 15 Subpart B
ICES-003 Issue 7Safety Compliance UL 62368-1:2019 Certification FCC, IC, cTUVus Package Contents
Device 1 User Manual 1 Warranty Card 1 Rubber Pads 4 Power Cord Retention Clip 1 Screws 6 × M4 × 8 mm cross recessed countersunk head screws Grounding Cable 1 × 1 m (3.28 ft.) Power Cord 1 × 1.8 m (5.91 ft.) Rack-Mount Brackets 2 - Additional Information
-
