Network Switch Specification Sheet
Managed PoE Switch
Physical Specifications
Dimensions 300 mm × 233 mm × 43.6 mm (11.81 in × 9.17 in × 1.72 in) Weight (with packaging) 3.45 kg (7.61 lbs) Weight (without packaging) 2.64 kg (5.82 lbs) Casing Metal Mounting Rack / Desk Warranty 3 Years Port Specifications

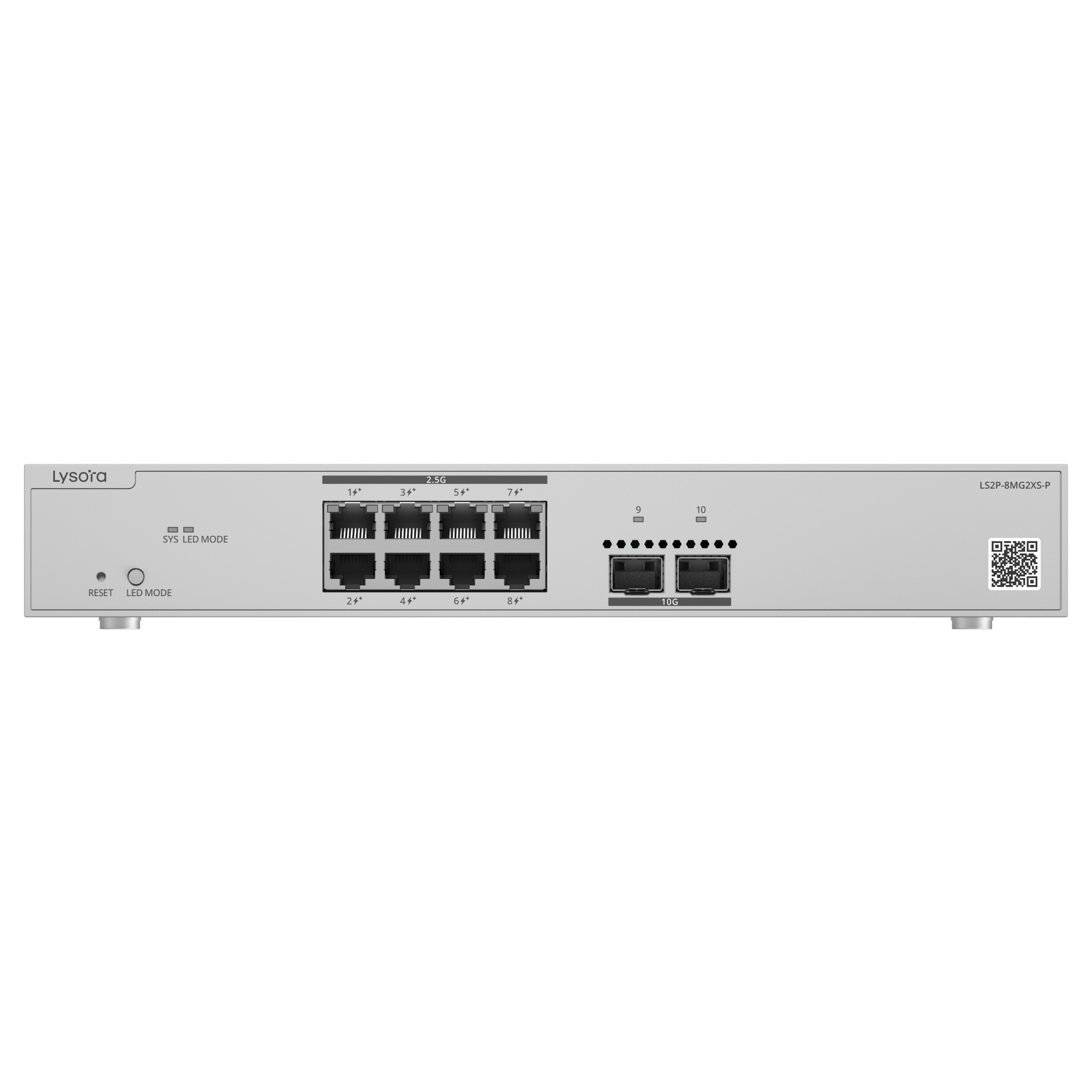

Total RJ45 Ports 8 Total Optical Ports 2 10GE SFP+ Ports 2 10/100/1000/2500BASE-T Ports 8 PoE Specifications
PoE/PoE+ Out Ports 8 PoE Budget 240 W PoE Power Pins 1–2 (+), 3–6 (-) Hardware & Performance
Switching Capacity 80 Gbps Forwarding Rate 58.72 Mpps Buffer Size 12 Mbit CPU Single-core processor, 800 MHz RAM 512 MB Flash Memory 256 MB Recommended Camera Limit 200 W H265: 300
400 W H265: 150Power & Consumption
Power Method 220 V AC power supply
Rated input voltage: 100–240 V AC, 50/60 Hz
Maximum input voltage: 90–264 V AC, 47–63 Hz
Maximum input current: 4.5 AMaximum Power Consumption 27 W (no PoE load)
278 W (full PoE load)Heat Dissipation 92.34 BTU/hr (no PoE load)
950.76 BTU/hr (full PoE load)Environment & Reliability
Operating Temperature 0°C to +50°C (32°F to 122°F) Storage Temperature –40°C to +70°C (–40°F to +158°F) Operating Humidity 10% RH to 90% RH (non-condensing) Storage Humidity 5% RH to 95% RH (non-condensing) Cooling Air cooling, left-to-right airflow Fans 2 × fixed fans MTBF 400,000 hours ESD Protection Contact discharge: 6 kV
Air discharge: 8 kVSurge Protection Service port: ±6 kV common mode
Power connector: ±6 kV common & differential modeEthernet Switching Features
Maximum VLANs 4094 MAC Address Entries 16,000 Port-based VLAN Yes IEEE 802.1Q VLAN Yes Voice VLAN Yes STP / RSTP / MSTP Yes LLDP / LLDP-MED Yes LACP Yes Rate Limiting Yes IP Routing & Services
IPv4 Static Routes 64 IPv6 Static Routes 64 IPv4 Routing Table 512 routes IPv6 Routing Table 128 routes ARP Entries 1000 DHCP Client Yes DNS Client Yes IPv4 / IPv6 Ping & Traceroute Yes Security Features
802.1X Authentication Yes MAC-based Authentication Yes Port Isolation Yes Storm Control Broadcast / Multicast / Unknown Unicast DHCP Snooping Yes ARP Anti-Spoofing Yes IP Source Guard Yes CPU Protection Policy Yes Management & Monitoring
Web Management Yes Cloud Management Yes App Management Yes HTTPS Login Yes SNMP v1/v2c/v3 Yes Syslog Yes NTP Client Yes Camera Detection Yes PoE Watchdog Yes Online Upgrade Yes Compliance & Certification
NDAA Compliant Yes EMC FCC 47 CFR Part 15 Subpart B, ICES-003 Issue 7 Safety Compliance UL 62368-1:2019 Certifications FCC, IC, cTUVus Package Contents
Device 1 User Manual 1 Warranty Card 1 Rubber Pads 4 Power Cord Retention Clip 1 Screws 8 × M4 x 8 mm countersunk screws Grounding Cable 1 × 1 m (3.28 ft.) Power Cord 1 × 1.5 m (4.92 ft.) Rack-Mount Brackets 2 - Additional Information
-
