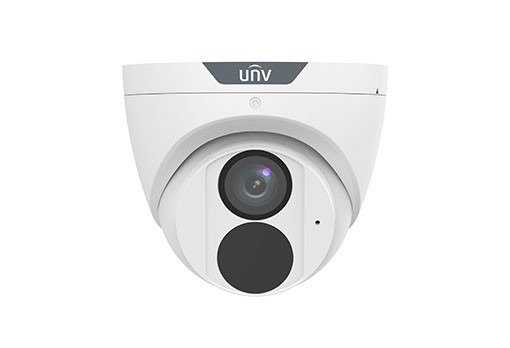

IPC3614SR-ADF28(40)KM-H (NDAA Compliant)

IPC3614SR-ADF28(40)KM-H (NDAA Compliant)

More Views

IPC3614SR-ADF28(40)KM-H (NDAA Compliant)
Ask a question

  • High quality image with 4MP, 1/3"CMOS senso

  • 4MP (2688*1520)@ 25/20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps;

  • Ultra 265, H.265, H.264, MJPEG

  • Easystar technology ensures high image quality in low illumination environment

  • 120dB true WDR technology enables clear image in strong light scene

  • Support 9:16 Corridor Mode

  • Built-in Mic

  • Smart IR, up to 30m (98ft) IR distance

  • Supports 512 G Micro SD card

  • IP67 protection

  • Support PoE power supply

  • 3-Axis

Call For Pricing
OR
  • |
Description

Details

Camera Description
Max Resolution 4MP
Sensor 1/3.0" CMOS
Min. Illumination Colour: 0.003 lux ( F1.6, AGC ON)
0 Lux with IR on
Day/Night IR‑cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N >52dB
WDR 120dB
Lens Description
Focal Length IPC3614SR-ADF28KM-H:2.8 mm IPC3614SR-ADF40KM-H:4.0 mm
Iris Type Fixed
Iris F1.6
Field of View (H) IPC3614SR-ADF28KM-H:97.0° IPC3614SR-ADF40KM-H:79.0°
Field of View (V) IPC3614SR-ADF28KM-H:52.2° IPC3614SR-ADF40KM-H:42.3°
Field of View (D) IPC3614SR-ADF28KM-H:107.5° IPC3614SR-ADF40KM-H:85.1°
DORI Description
DORI Distance(Lens) IPC3614SR-ADF28KM-H:2.8mm IPC3614SR-ADF40KM-H:4.0mm
DORI Distance(Detect) IPC3614SR-ADF28KM-H:63.0m(206.7t) IPC3614SR-ADF40KM-H:90.0m(295.3ft)
DORI Distance(Observe) IPC3614SR-ADF28KM-H:25.2m(82.7ft) IPC3614SR-ADF40KM-H:36.0m(118.1ft)
DORI Distance(Recognize) IPC3614SR-ADF28KM-H:12.6m(41.3ft) IPC3614SR-ADF40KM-H:18.0m(59.1ft)
DORI Distance(Identify) IPC3614SR-ADF28KM-H:6.3m(20.7ft) IPC3614SR-ADF40KM-H:9.0m(29.5ft)
Illuminator Description
Supplemental Light IR
Illumination Distance(IR) 30 m (98.4 ft)
Wavelength 850 nm
IR On/Off Control Auto/Manual
Video Description
Video Compression Ultra 265; H.265; H.264; MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
Video Bit Rate 128 Kbps ~ 6144 Kbps
U-code Support
OSD Up to 4 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Video Stream Dual Streams
Image Description
White Balance Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti‑clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Events Description
Basic Detection Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection); Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection
General Function Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication
Audio Description
Audio Compression G.711U; G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8KHZ
Storage Description
Edge Storage Micro SD, up to 512 GB
Network Storage ANR; NAS (NFS)
Network Description
Protocols IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; 802.1x; SNMP
Compatible Integration ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF
Client UNV‑Link;  UNV‑Link Pro; EZStation
Web Browser Plug‑in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above; Plug‑in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface Description
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 x RJ45 10M/100M Base‑TX Ethernet
Video Output N/A
Certification Description
EMC CE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 55035)
FCC (FCC 47 CFR part15 B)
Safety CE LVD (EN 62368‑1)
UL/CUL (UL 62368‑1, CAN/CSA C22.2 No. 62368‑1)
Environment CE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection IP67 (IEC 60529)
General Description
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 4.4W
Power Interface Ø 5.5mm coaxial power plug
Dimensions Φ111 x 95mm (Φ4.4” x 3.7”)
Weight 0.32kg (0.71lb)
Material Metal
Working Environment ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Storage Environment ‑30 °C ~ 60 °C (‑22 °F ~ 140 °F), Humidity: ≤95% RH (non‑condensing)
Surge Protection 4KV<strong style="box-sizing: border-box; -webkit-font-smoothing: anti
