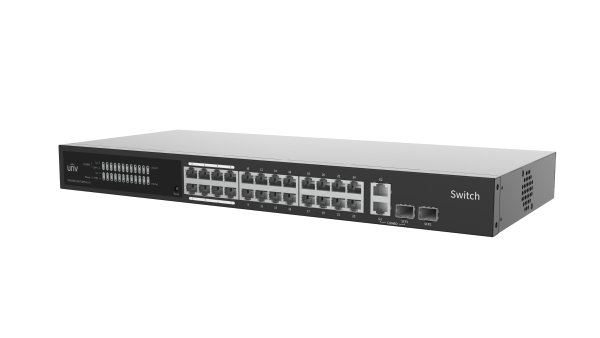

NSW3000-25GT1GP1GC-IN |
| Hardware Specification |
| Ports Type |
24 x 10/100/1000Mbps port (RJ45)
1 x 10/100/1000Mbps port (RJ45)
1 x Gigabit SFP
1 x Gigabit Combo |
| Standards |
IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| Switching capacity |
54Gbps |
| Forwarding performance |
40.176Mpps |
| Packet Buffer |
4 M bit |
| MAC |
8K |
| Weight |
1.85kg |
| Dimensions (W×D×H) |
440mm x 189.8mm x 44mm |
| Power Supply |
AC: 100 to 240V, 50/60Hz |
| Max.Power |
18W |
| Prior Ports |
1 to 8 |
| Cooling Fans |
1 |
| Operating Humidity |
5% to 90% RH, noncondensing |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Indicator |
Power:
Off: Abnormal power input.
Green: Normal power input.
Link/Act:
Off: Disconnected to the port
On: Connected to the port
Blinking: Transmitting data |
| Software Specification |
| Ethernet |
Supports full duplex, half duplex, and auto-negotiation working modes.
Supports port auto-negotiation rate.
Supports port priority flow control.
Supports a link aggregation group (consist of two uplink ports)
Supports port flow statistics
Supports enabling/disabling ports |
| VLAN |
Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094 |
| MAC |
Support (up to 8K) .
Supports clearing the dynamic MAC address |
| Loop Detection |
Loop Detection |
| QoS |
Supports port rate limitation.
Supports broadcast storm control. |
| Security |
Supports port isolation (only for the downlink ports)
Supports locking login IP address, up to 64 addresses can be locked |
| Maintenance |
Supports N: 1 port mirroring
Supports unified software configuration, management, and search
Supports discovering the connected video devices and generating a network topology on the software.
Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software. |
| System |
Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc.
Allows to edit and manage the IP address and device name
Supports single-user management, user authentication, and password modification
Allows to view other switches information on the same network, up to 32 switches
Allows to view the connected video devices information, up to 64 devices |
